High Level Design

1. Upload-Service​

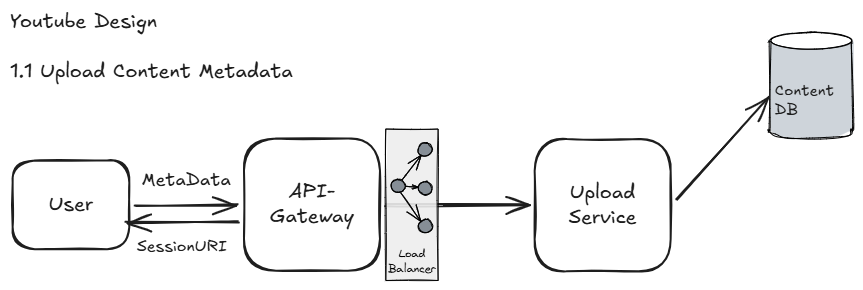

1.1 Metadata Upload and Session-URI response​

Upload-Service-1.1

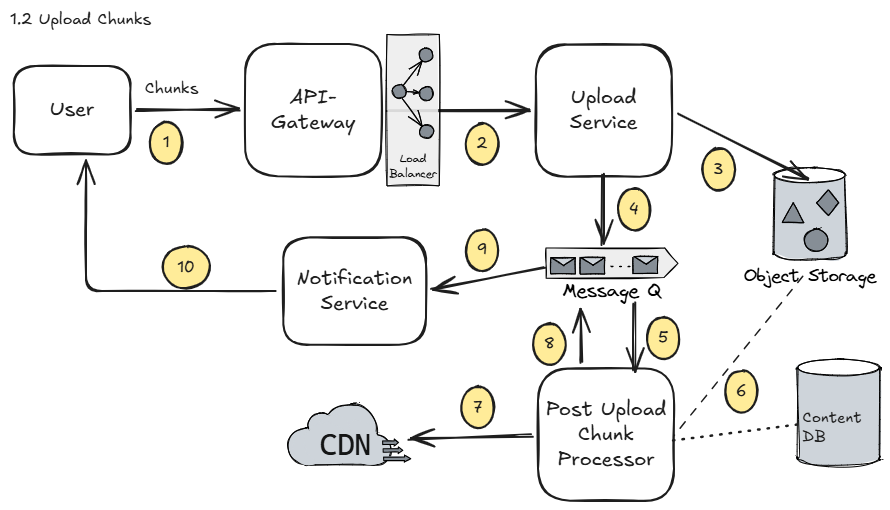

1.2 Content Chunks Uploader Using Session-URI​

  1. Users uploads chunks using Session URI.
  2. API-Gateway diverts the request to Upload Service.
  3. Upload-Service stores the chunk at Object-Storage.
  4. Upload-Service pushes an event to message queue signalling/requesting post-processing over uploaded chunk.
  5. Post-Upload Chunk Processor listens to the event.
  6. Post-Upload Chunk Processor fetches the chunk from Object-Storage and starts processing.
  7. After processing, chunks are pushed to CDN and location of chunks are written back to ContentDb.
  8. An event is generated to message-queue signalling upload-completion.
  9. Notification-Service listens to the event.
  10. Notification-Service notfies the user about the completed upload.

Upload-Service-1.2

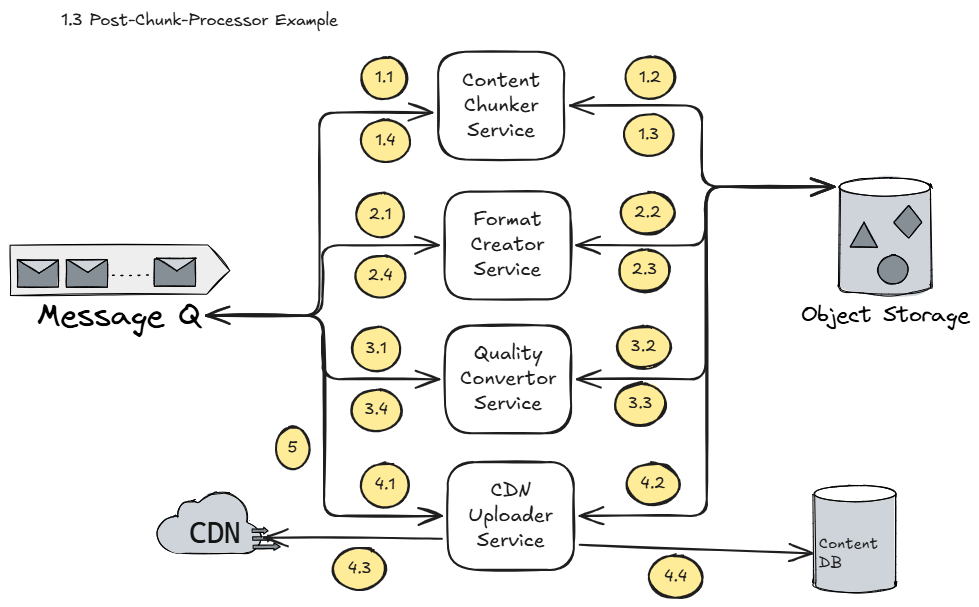

1.3 Post-Upload Chunk Processor​

As an Example, Post-Upload Chunk Processor can involve the following services:

  1. Content Chunker Service
  • Breaks the uploaded chunks into more smaller pre-defined chunk-lengths(10 secs).
  • Fetches chunks from Object-Storage, breaks them and stores them back to Object-Storage and then generates an event back to MessageQ in order to picked up by next-service.
  1. Format Creator Service
  • Converts the format of videoes to mp4, mov etc.
  1. Quality Convertor Service
  • Converts the quality to predefined formats: 720p, 1080p, 240p, 4K etc.
  1. CDN-Uploader Service
  • Fetches the processed-chunks from Object-Storage.
  • Stores them at CDN
  • Stores the location of each chunk at ContentDB

Upload-Service-1.3

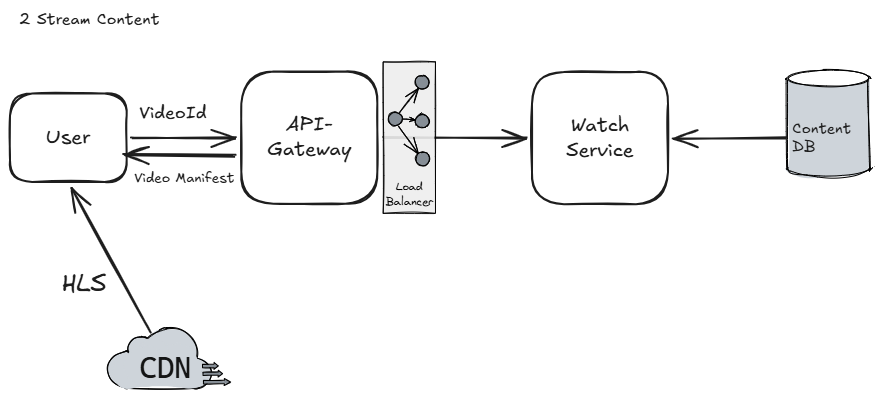

2. Stream-Content​

Stream-Service-1.3

For excalidraw file, click here to download
